ATTENTION! NEW! Micro-wave detector Prizma-3-24/250NR1 with a narrow volume detection zone.

Micro-wave detector Prizma-3-24/250NR1 with a narrow volume detection zone.

Distinctive features:

• the possibility of working close to the obstacles, the walls of buildings and other structures;
• narrow volume detection zone;
• small housings of detector blocks;

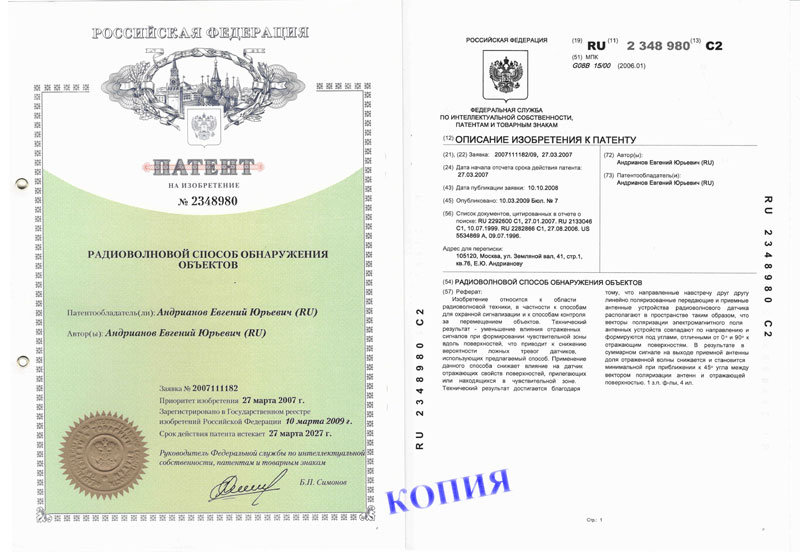

• Patent RU 2348980C2

Price per set $ 417

Application of the detector

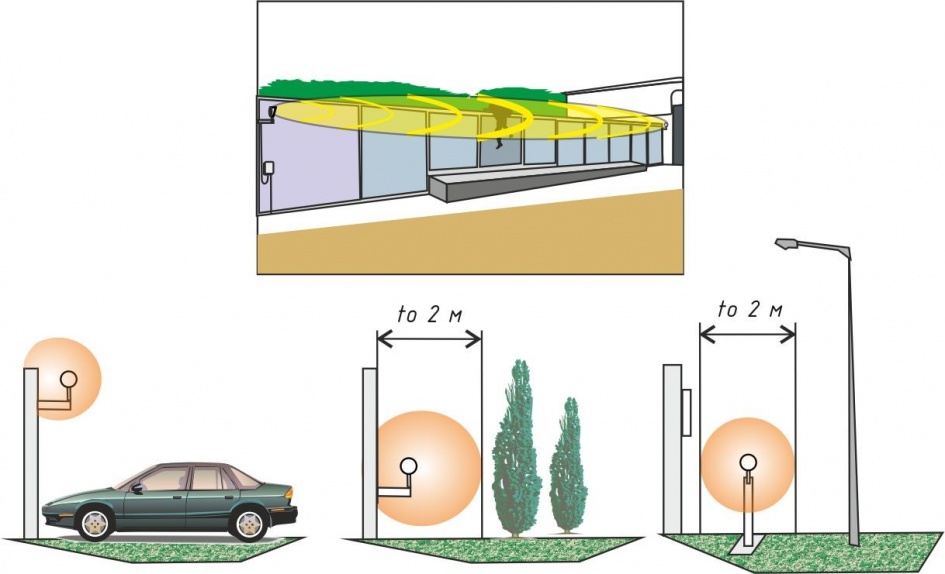

Depending on the tasks to be performed, the detection zone can be formed:

• Close to fences, walls and other objects;
• on borders that are limited in width;
• in open areas.

Using the new Prizma-3-24/250NR1 detectors, it was possible to block the borders with a small exclusion zone on the fence, the walls of buildings and various structures on the perimeter, it is most convenient to place small antenna units and a separate control unit, the degree of protection of IP66 enclosures will minimize the influence of environmental factors .

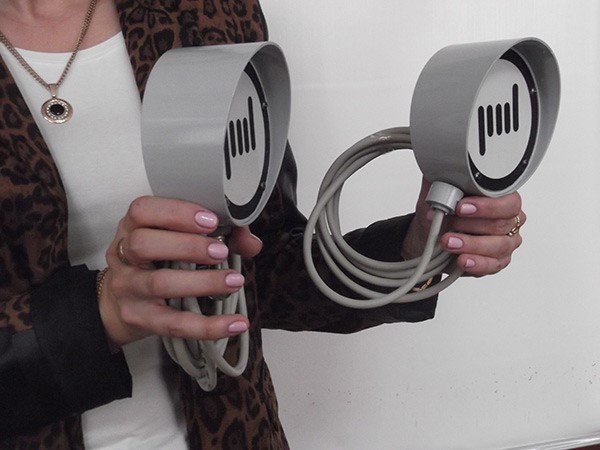

The structure of the detector

• transfer unit (1 pc.)
• receiving unit (1 pc.)
• control unit of the BMPM (1 pc.)

Technical characteristics of the detector

• The length of the detection zone is 1 ... 250 m;
• Narrow detection area:
  • the maximum width of the detection zone is 2 m;
  • the maximum height of the detection zone is 2 m;
• Antenna opening angle 2 °;
• Supply voltage 10 ... 36V;
• Current consumption is not more than 40 mA;
• The operating frequency of the detectors is 24.15 ± 0.1 GHz;
• Operating temperature range from -50 ° C to + 50 ° C;
• Operability at wind speed up to 30 m / s;
• Serviceability for precipitation up to 30 mm / h;
• Degree of protection of the block casings - IP66;
• Probability of detection - not less than 0,98;
• Service life - not less than 10 years;
• Warranty period is 18 months
